Why Operating Voltage Range Matters for Pump Controllers in Unstable Power Grids？

In many real-world applications, water pumps rarely operate under ideal power conditions.

This is especially true in agricultural irrigation, remote water supply stations, rural pump houses, mining sites, and regions with weak or unstable electrical grids. In these environments, voltage fluctuations—including overvoltage, undervoltage, and unstable power supply—are common and can seriously affect the reliability of pump control systems.

3S received feedback from customers in the Indian market. In some project locations, three-phase voltage was found to fluctuate between 380V and 440V, while single-phase voltage ranged from approximately 180V to 260V. Such continuous voltage variations place significant stress on conventional pump controllers.

When the input voltage exceeds or falls below the controller's operating range, several problems may occur:

• Industrial pump control panel malfunction
• Damage to electronic components
• Frequent controller failures
• Unexpected pump shutdowns and interrupted water supply
• Increased maintenance and replacement costs

For distributors, contractors, and system integrators, equipment failure means much more than replacing a controller. It can also lead to repeated site visits, higher after-sales service costs, customer complaints, and long-term damage to business reputation.

Most traditional industrial pump control panels are designed around standard rated voltages such as 220V or 380V.

However, actual project conditions are often far more challenging. Common causes of voltage instability include:

• Long transmission distances in remote areas causing voltage drops
• Heavy electricity demand during peak hours resulting in undervoltage
• Sudden load changes creating temporary overvoltage
• Relatively unstable power infrastructure in agricultural regions

Without sufficient voltage tolerance, conventional controllers operating under these conditions are more likely to experience component stress, shortened service life, and unexpected failures.

Today, voltage adaptability has become one of the most important indicators of a reliable pump control system.

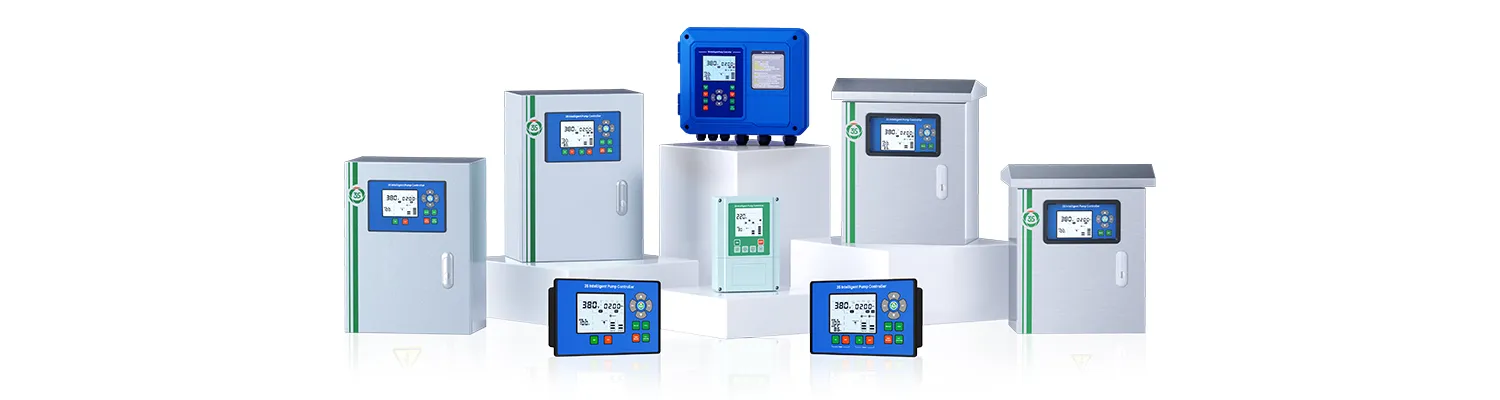

To meet the demands of different power grids worldwide, the 3S industrial pump control panel features a wide operating voltage range, allowing stable operation under varying electrical conditions.

Single-Phase Pump Controller

Operating Voltage Range: 90V–270V

Three-Phase Pump Controller

Operating Voltage Ranges:

• 180V–415V (Rated Voltage: 220V)
• 280V–460V (Rated Voltage: 380V)

This wide-voltage design helps reduce operational risks caused by unstable power supply while improving the reliability of pump systems in demanding environments.

In addition to wide voltage compatibility, the 3S industrial pump control panel incorporates advanced voltage protection logic.

When abnormal power conditions are detected, the controller responds automatically to protect both the control system and the pump.

Overvoltage Protection

Prevents excessive input voltage from damaging internal electronic components.

Undervoltage Protection

Prevents pumps from operating under low-voltage conditions, reducing the risk of motor overheating and premature failure.

These protection features help minimize:

• Controller damage
• Unexpected pump shutdowns
• On-site maintenance visits
• After-sales service workload

For end users, a more reliable water pump control system means:

• More stable water supply
• Fewer equipment failures
• Lower maintenance costs
• Longer equipment service life

For distributors, EPC contractors, and system integrators, it also brings significant business benefits:

• Reduced warranty claims
• Lower technical support costs
• More reliable project delivery
• Stronger customer satisfaction and brand reputation

Modern industrial pump control panel must do more than meet electrical specifications—they must withstand the realities of field operation.

Whether serving agricultural irrigation systems, remote water supply stations, industrial pumping applications, or other locations with unstable power grids, a reliable industrial pump control panel plays a critical role in ensuring continuous pump operation.

With its wide voltage operating range, intelligent overvoltage and undervoltage protection, and design optimized for demanding environments, the 3S Smart Pump Controller helps customers worldwide build more reliable, intelligent, and efficient pump control systems.

Because reliable pumping starts with reliable control.
