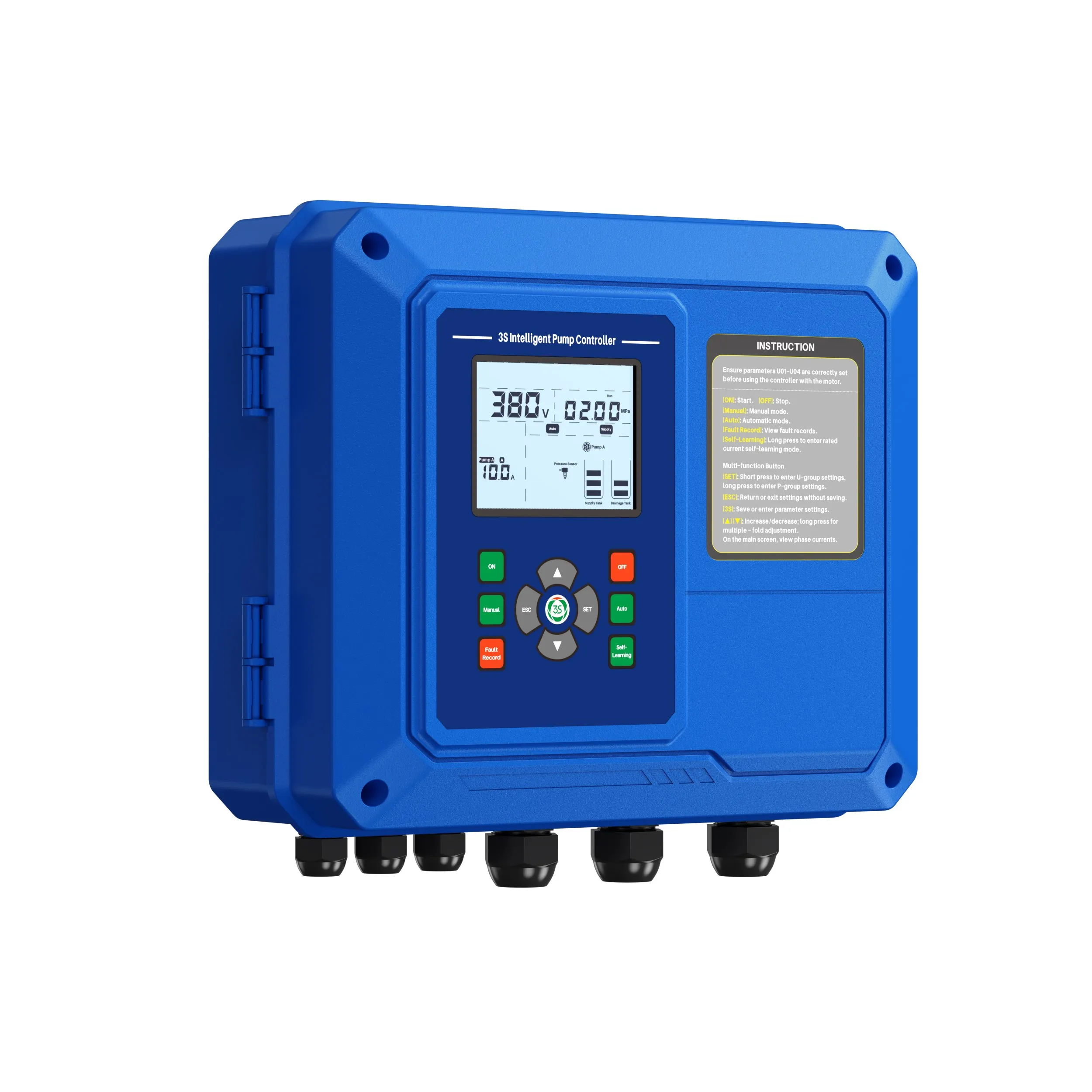

The IP65 booster pump controller is specifically designed for large-scale industrial booster pump stations and main pump control in regional water plants. It needs to be integrated into systems via the RS485 protocol to achieve precise control of high-power pump sets.
Full Power Range & Voltage Compatibility
Power Range: 4.0 kW to 30 kW coverage for various applications
Voltage Support: Three-phase AC input from 220V to 415V (±10%), compatible with multi-country industrial grid standards
Simplified Selection: Eliminates custom procurement costs and delays
Robust Enclosure & Protection
ABS Enclosure: High-strength engineering plastic with IP65 rating, excellent impact and UV resistance

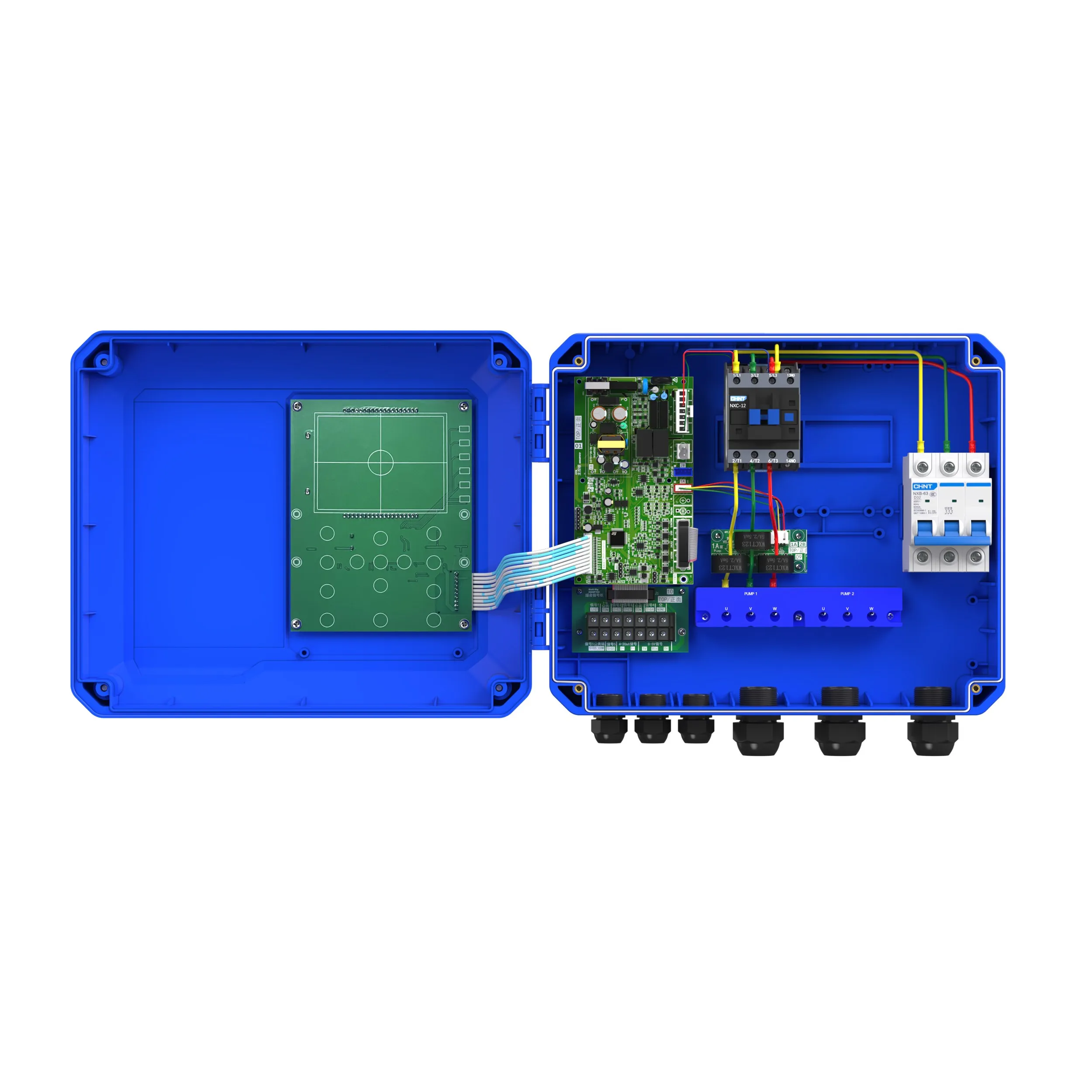

PCB Protection: Coated with three-proof paint and self-developed protective layer for moisture and salt spray resistance
Operating Range: -20°C to +55°C for harsh environments
This makes the IP65 booster pump controller suitable for various high-humidity, high-dust, or coastal project environments.
Totaling 17 Protections
Motor Protection: Locked rotor (400% ratio, 3s response), Obstruction (240% ratio, 5s response)
Electrical Safety: Three-phase imbalance (30% ratio, 5s response), Phase sequence error
Signal Monitoring: Sensor disconnection, 4-20mA signal fault protection
Preventive Features: Rust prevention cycle (168h default), Impeller anti-corrosion (10s runtime)
These protections cover common fault scenarios, ensuring equipment safety and operational stability. This three pump intelligent pump control starter solution provides all-round security for pump operation.
|
Item |
Specification |
|
Input Voltage |
Three-phase 220–415V AC (±10%), compatible with multi-country standards |
|
Frequency Range |
50Hz / 60Hz self-adaptive |
|
Output Power Range |
4.0–30kW (depending on model) |
|
Control Modes |
Manual / Automatic / Timer, supporting self-learning function |
|
Signal Compatibility |
10 types of signals including float switches, pressure sensors, liquid level sensors, flow switches, etc. |
|
Protection Functions |
17 protections: Overcurrent, undercurrent, overvoltage, undervoltage, locked rotor, obstruction, dry run, three-phase imbalance, anti-rust, Phase loss, signal loss, sensor error, short circuit, phase sequence, excessive start-stop, water leakage, overtemperature protection |
|
Communication Interface |
RS485 (optional) / Modbus RTU |
|
Enclosure Material |
ABS engineering plastic (UV-resistant, corrosion-resistant) |
|
Operating Temperature |
-20°C ~ +55°C |
|
Dimension / Weight |
324*123*263mm, weight varies by model |
It comes standard with power-off memory and fault recording functions, which can store the latest 10 fault codes, facilitating after-sales traceability.
An optional RS485 communication interface is available, supporting the Modbus RTU protocol. This allows easy integration into various PLC or upper computer systems, enabling remote monitoring, centralized control, and fault alarms.
As an advanced three pump intelligent pump control starter device, it enhances the intelligence level of the entire pump system.
Q1: Does it support the commonly used 380V three-phase industrial power grid?
A1: Yes, the IP65 booster pump controller supports three-phase input of 220–415V, which is suitable for common industrial power grids. Please confirm the voltage match during installation to ensure the normal operation of the equipment.
Q2: Does the equipment record historical fault information?
A2: Yes, the three pump intelligent pump control starter device can store the latest 10 fault records. Press the【Fault Record】key to enter the fault record page, and press the "▲,▼" keys to query the latest 10 fault records.
