3 Phase Duplex Pump Panel, For Booster, Water Supply & Fire Pump Sets

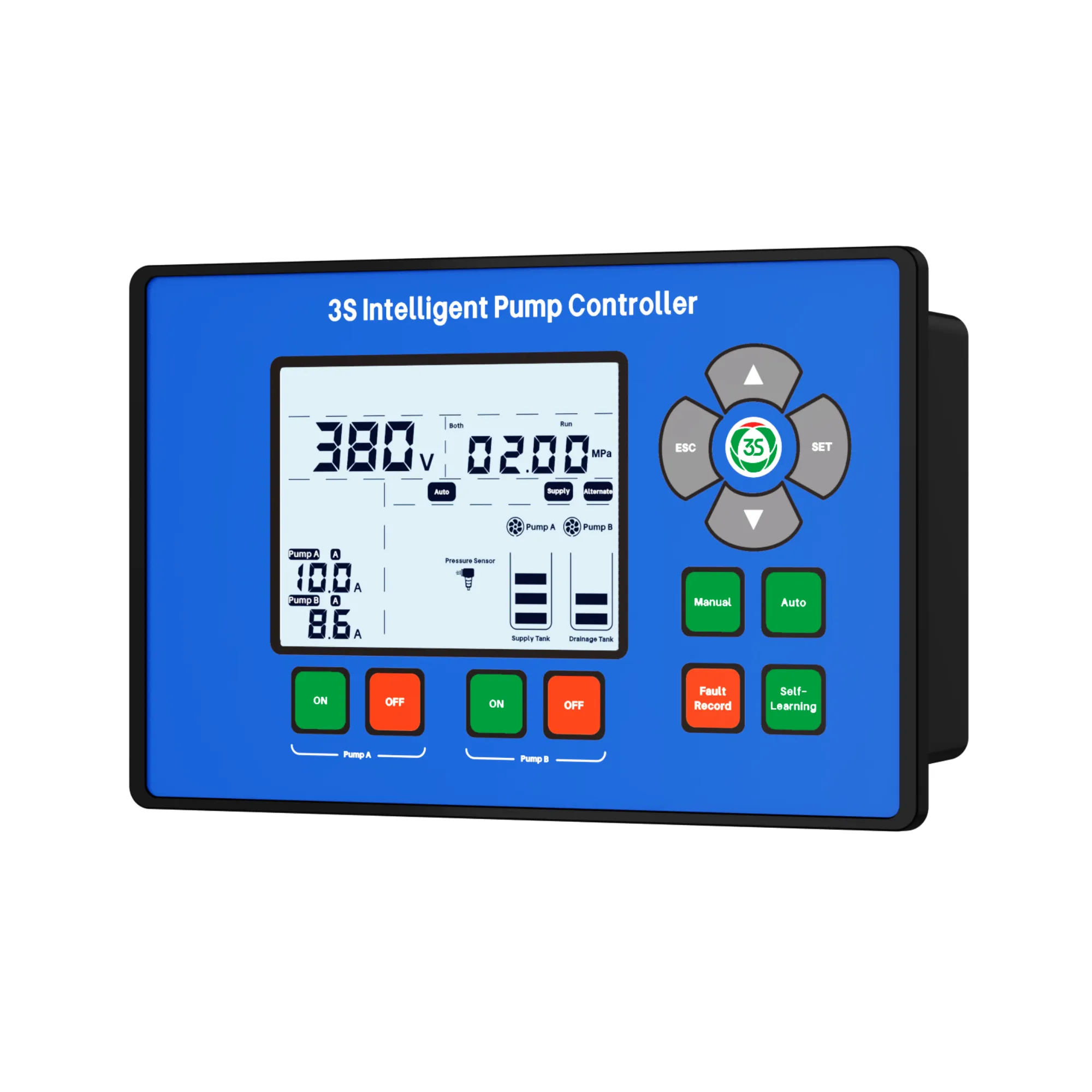

3S-32-PA High-Compatibility Duplex Pump Smart Control Panel

It supports multi-power output and 8 control logics, with built-in automatic duty/standby switching. The 3 Phase Booster pump controller is compatible with booster pump sets, water supply pump sets, and fire pump sets, helping pump manufacturers efficiently achieve complete machine matching.

1. Signal Input Compatibility: Adapts to different pump sets and project needs, easily connecting to various control signals.

Booster pump sets (pressure maintenance): 0-5V remote pressure gauges, electric contact pressure gauges, 4-20mA pressure transmitters, flow switches, pressure switches, etc.

Water supply pump sets (liquid level control + dry running prevention): Float switches, 4-20mA liquid level sensors, electrode-type liquid level probes, etc.

Fire pump sets (emergency start + ultra-high reliability): Pressure switches, flow switches, 4-20mA pressure transmitters.

2. Power Supply Compatibility: Whether for countries with low, standard, or high voltage, one unit works universally, effectively reducing inventory pressure of different controller types.

This 3 Phase Booster pump controller supports single-phase AC110-250V and three-phase AC220–415V (AC440-490V optional), and can automatically adapt to 50Hz/60Hz power grids.

3. Start-up Mode and Power Compatibility: Easily adapts to 0.37–500 kW pump sets

The Duplex Pump Smart Control Panel can freely combine DOL, star-delta, auto-transformer reduced voltage starting, and soft start modes.

4. Extended Function Compatibility: Easily meets personalized project needs, leading the new era of intelligent IoT.

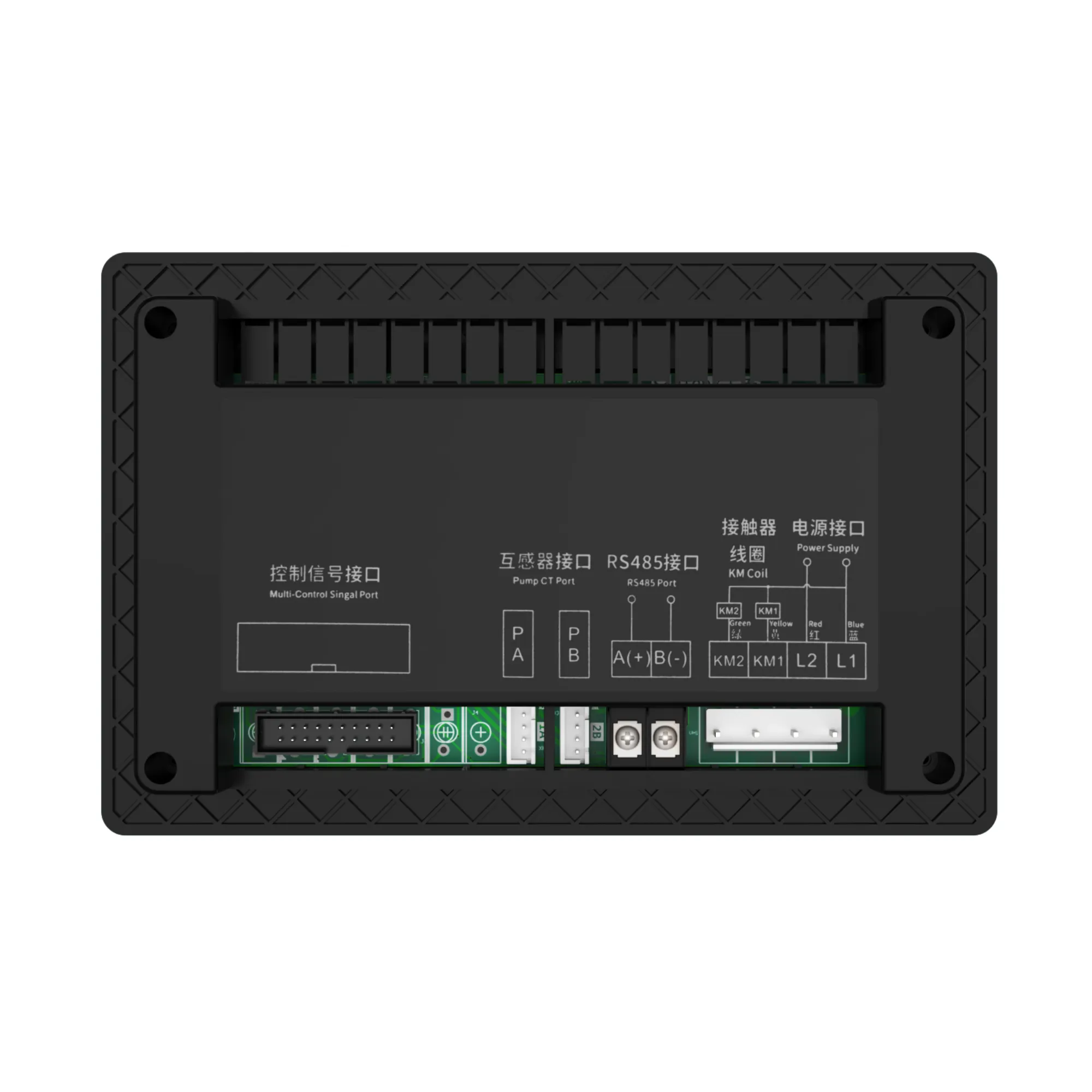

The signal board reserves multiple sets of terminals for easy expansion of additional signal devices.

The 3 Phase Booster pump controller can be expanded with remote control, including RS485 (Modbus RTU), IoT, and WiFi, enabling seamless integration into PLC, BMS, SCADA, DCS, and HMI systems.

8 dual-pump control logics adapt to entry-level to high-end control needs

Logic feature: One pump operates, the other stops.

Value for pump manufacturers: Used in small systems or entry-level models, this Duplex Pump Smart Control Panel helps manufacturers provide low-cost solutions to meet basic water supply needs.

Simultaneous Dual-Pump Start

Logic feature: Both pumps run simultaneously to instantly enhance water supply capacity.

Value for pump manufacturers: This 3 Phase Booster pump control is ideal for matching fire pumps or emergency booster pump sets, making manufacturers’ products easier to pass safety standard certifications.

Duty/Standby – Pump A Duty, Pump B Standby

Logic feature: Pump A runs long-term, while Pump B stands by.

Value for pump manufacturers: Ensures water supply continuity, reduces user complaints and after-sales risks, and improves the overall reliability of pump sets.

Duty/Standby – Pump B Duty, Pump A Standby

Logic feature: Pump B runs, while Pump A stands by.

Value for pump manufacturers: the Duplex Pump Smart Control Panel flexibly adapts to different owners’ needs, reducing modification costs for manufacturers across various projects.

Alternating Duty

Logic feature: The two pumps automatically switch based on operation time or frequency.

Value for pump manufacturers: Extends the lifespan of pump bodies and motors, reduces customers’ long-term maintenance costs, and enhances manufacturers’ competitiveness in bidding or promotion.

Timed Rotation Under Alternation Duty

Logic feature: Forces pump switching at fixed intervals even without task changes.

Value for pump manufacturers: Prevents pump damage caused by long-term continuous operation of a single pump, ensures balanced operation time of the two pumps, and improves manufacturers’ reputation.

Parallel Alternation with Load Sharing

Logic feature: Depending on system needs, the pump set can operate alternately or in parallel, intelligently distributing loads.

Value for pump manufacturers: This 3 Phase Booster pump control supports high-end projects such as smart buildings and industrial systems, helping manufacturers enter higher-end market segments.

Pure Timer Control

Logic feature: No need to connect any sensors; controls the start/stop of the two pumps solely through time logic.

Value for pump manufacturers: Suitable for low-cost scenarios or simple pump sets, helping manufacturers expand price-sensitive markets.

From entry-level to high-end projects, the 3S-32-PA Duplex Pump Smart Control Panel provides pump manufacturers with an all-in-one dual-pump control solution, reducing design modifications and lowering development difficulty.
