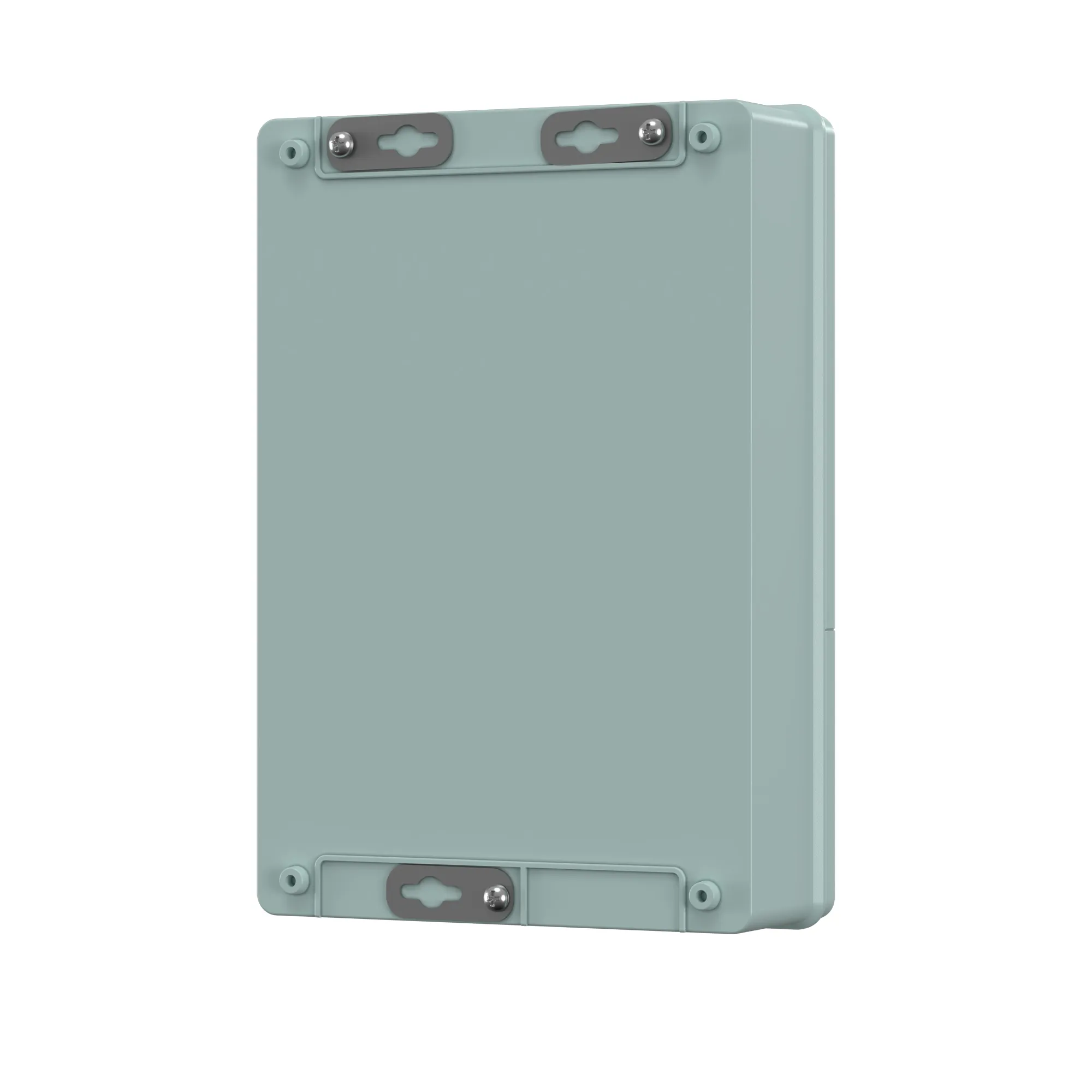

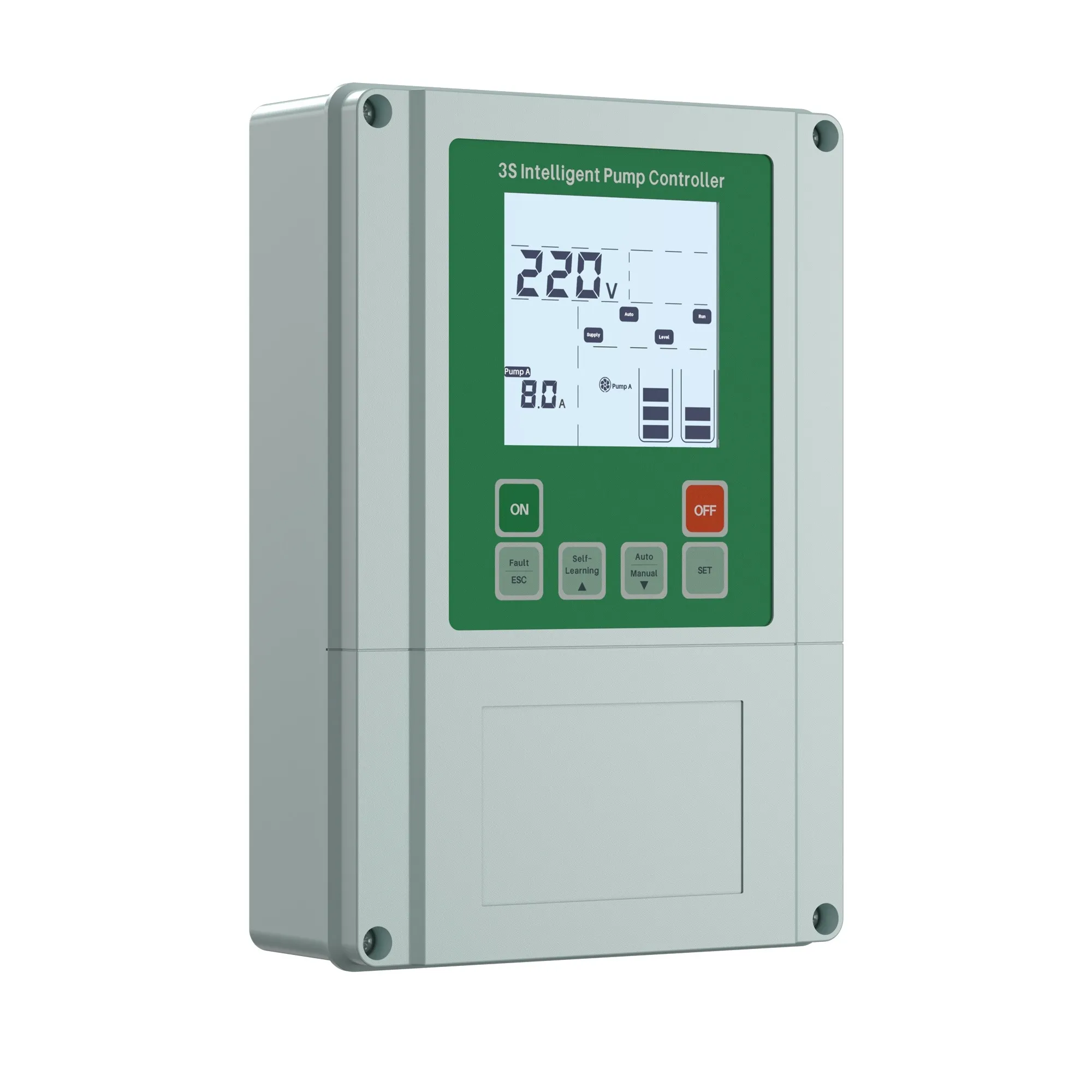

2.2kW Single Phase Smart Water Pump Starter for Household& Well Systems

The 2.2kW Single Phase Smart Water Pump Starter is designed for household and residential water supply applications, such as deep wells and rooftop water tank systems. It combines intelligent control with compact design and simple installation.

Startup method: DOL (Direct On Line)
Drive method: Relay drive
Power: 2.2kW (3hp)
Rated voltage: AC90–250V

Self-learning feature: Simplified commissioning
Control modes: Automatic, manual, timer, remote (upgradable)
Fault query: Stores nearly 10 fault records for easy troubleshooting

Household Deep Well Pump Control
This Smart Water Pump Starter provides automatic logic for rooftop water tank systems:

Rooftop water shortage + well water shortage → Pump does not start

Rooftop water shortage + well sufficient water → Pump starts

Rooftop tank full → Pump stops to prevent overflow

Booster Pump Water Supply
Works seamlessly with pressure switches or electric contact gauges.

Pressure drops to cut-in → Pump starts

Pressure rises to cut-out → Pump stops

Dry Run Protection:
Install probes in the well or operate sensor-free to prevent motor damage. When water shortage occurs, the pump automatically stops.

Signal Delay & Anti-Rust Protection:
Adjustable 0–120s start-stop delay prevents frequent motor cycling.

An optional anti-rust cycle periodically runs the pump for 10 seconds (adjustable) to avoid impeller rust and blockage.

This controller is ideal for homes, small buildings, and villas where stable water pressure and system protection are essential. It enhances convenience and extends pump lifespan, minimizing maintenance effort.
