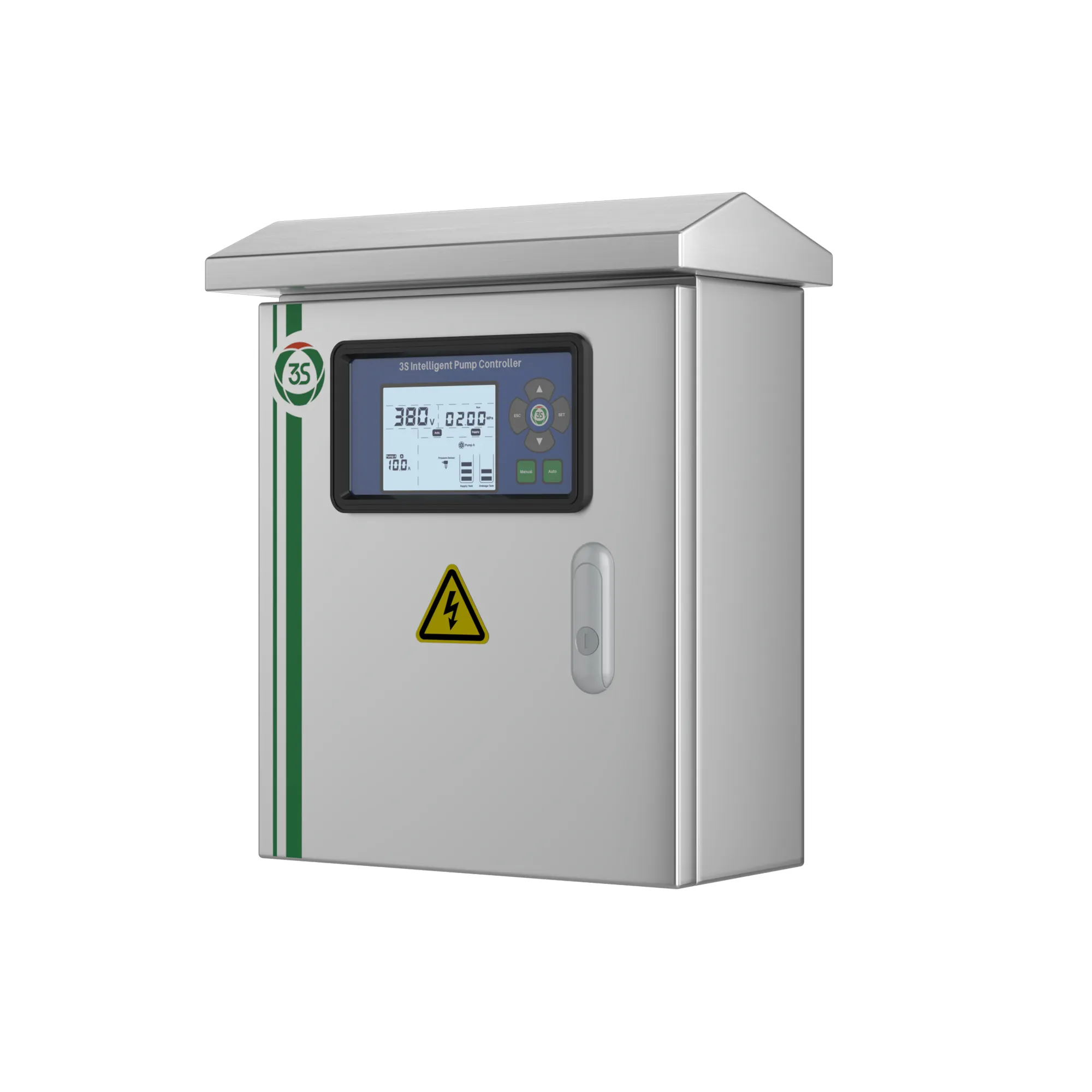

IP55 Industrial 3 Phase Pump Panel - 17 Protections & Wide Voltage 220-415V

IP55 Industrial 3 Phase Pump Panel - 17 Protections & Wide Voltage 220-415V

Product Category : Intelligent Pump Controller - IP55 / IP65 Pump Box

Model: 3S-S31-040 / 3S-S31-075 / 3S-S31-110 / 3S-S31-150 / 3S-S31-185 / 3S-S31-220 / 3S-S31-300

Power Range: 4.0kW to 30kW

Core Components: ST microcontroller, Hongfa relays, CHINT MCB/AC contactor

Rated Voltage & Frequency: Three phase 220-415V AC, 50/60Hz

Protection Degree: IP65, 360° water-resistant tested, PCB moisture-protected

Tested: 55 °C ± 5 °C high-temperature burn-in; 70 °C / 95% RH temperature-humidity cycling test

Surge Protection: Built-in 4 kV surge module; tested to 5 kA lightning surge (8/20 μs).

17 Protections: Electrical protection, Voltage/current protection, Sensor & signal protection, Operational logic protection.

Certifications: CE, LVD, EMC

Applications: Aquaculture & fish farm circulation, Irrigation & agriculture, Tunnel & subway drainage, Underground parking drainage

Inquiry Online

Email To Us

Leave a message

Advanced Control & Integration

Application Field: Outdoor main pumps at ports and terminals, water supply for coastal chemical plants. The Stainless Steel Automatic Single Water Pump Controller supports RS485 industrial protocol integration.

Multi-Mode Intelligent Control Logic

Automatic Operation: Connect to liquid level, pressure and other sensors for intelligent start-stop.

Timed Control: Supports operation by time periods to meet irrigation/drainage needs.

Manual Control: Facilitates on-site commissioning or emergency intervention operations.

Remote Control (Optional): Connect to the central control system via RS485 interface to realize remote start-stop and status monitoring, a key function of the IP55 three phase pump control panel.

Key Protection Features & Response Times

Fault Name	Trip response times	Parameter Setting Range
Over Voltage	5 seconds (User adjustable)	1-120 seconds
Under Voltage	5 seconds (User adjustable)	1-120 seconds
Short Circuit	＜0.1 second	Non-adjustable
Inverse-time Thermal Overload	＜1 second (User adjustable)	Refer to the inverse-time thermal overload curve
Definite-time Thermal Overload	20 seconds (User adjustable)	1-120 seconds
Underload	5 seconds (User adjustable)	1-120 seconds
No-load	5 seconds (User adjustable)	1-120 seconds
Rotor Lock	3 seconds (User adjustable)	1-120 seconds
Impeller Jam	5 seconds (User adjustable)	1-120 seconds
3-Phase Imbalance	5 seconds (User adjustable)	1-120 seconds
Phase Failure	3 seconds (User adjustable)	1-120 seconds
Incorrect Phase Sequence	Premium√
Repeat start-stop	Premium√
Water Ingress Protection	Premium√
Motor Thermal Protection	Premium√

Technical Specifications for Integration

Parameter Item	Specification Description
Input Voltage	Three-Phase 220--415V
Power Range	4.0--30kW
Control Mode	Automatic / Manual / Timed / Remote (Optional)
Signal Input	Supports 10 types of common water level/pressure control signals
Communication Interface	RS485 (Optional), Modbus RTU Protocol

Application Case: Reliability in Demand

Application Type

Common Issues

3S Controller Solutions

Water Supply for Coastal Chemical Plants

Frequent grid voltage fluctuations in coastal areas, easily causing damage to control equipment, which in turn leads to water supply interruption and increased maintenance costs

Adopts a wide-voltage design. IP55 three phase pump control panel will not be damaged by abnormal voltage, thus ensuring stable system operation and avoiding shutdown risks caused by controller failures.

Municipal Emergency Drainage

Frequent emergency situations, requiring rapid fault alarm and reliable protection

17 comprehensive protections: Covering electrical, operational and environmental risks. Real-time alarm + clear fault name. Helps quickly locate and restore the system.

Memory of the latest 10 faults: Supports data traceability and predictive maintenance. Improves the safety, response speed and maintenance efficiency of the emergency drainage system.

Brief Operation and Configuration

After power-on, it enters the initial mode. Press the "self-learning" button for 5 seconds to enter the self-learning state.

You can set the operation mode, protection parameters, timed start-stop logic, etc., through the menu.

The LCD screen of the IP55 three phase pump control panel can display real-time operating status, voltage and current, water tower liquid level, fault codes and other information.

Frequently Asked Questions (FAQ)

Q1: What is the maximum load current supported by the IP55 three phase pump control panel?

A1: Different models have different maximum currents corresponding to their rated powers. Please refer to the power range (4.0kW to 30kW) in the technical specification table to ensure the model selection meets the current requirements of the on-site pump.

3S Model	AC Contactor	MCB
3S-S31-040	CHINT NXC-12	32A (CHINT)
3S-S31-075	CHINT NXC-18	32A (CHINT)
3S-S31-110	CHINT NXC-25	63A (CHINT)
3S-S31-150	CHINT NXC-32	63A (CHINT)
3S-S31-185	CHINT NXC-40	100A (CHINT)
3S-S31-220	CHINT NXC-50	125A (CHINT)
3S-S31-300	CHINT NXC-65	125A (CHINT)
